Microarray analysis of bone marrow-derived macrophage cells treated with Kdo₂-lipid A (KLA) and ATP

Kdo₂-Lipid A / ATP gene array data - treatment:control ratios

KEGG pathway: Taurine and hypotaurine metabolism (mmu00430)

Legend: : View data/graphs for replicates

Gene symbol	Time course plot	Accession	Description	Treatment	15min	30min	1hr	2hr	4hr	8hr	20hr
Ado	KLA  ATP  ATP+KLA	NM_001005419	2-aminoethanethiol (cysteamine) dioxygenase (Ado), mRNA [NM_001005419]	KLA	.33	.27	.24	.26	.35	.55	.84
				ATP	1.07	1.26	1.21	1.07	.80	.54	.95
				KLA/ATP	.29	.30	.29	.31	.30	.27	.37
AK087183	KLA  ATP  ATP+KLA	AK087183	0 day neonate lung cDNA, RIKEN full-length enriched library, clone:E030032L18 product:unclassifiable, full insert sequence. [AK087183]	KLA	.96	.95	.94	.93	.94	.89	.96
				ATP	1.05	.94	.92	.90	.93	.84	.93
				KLA/ATP	1.01	.97	.89	.91	.96	.87	.84

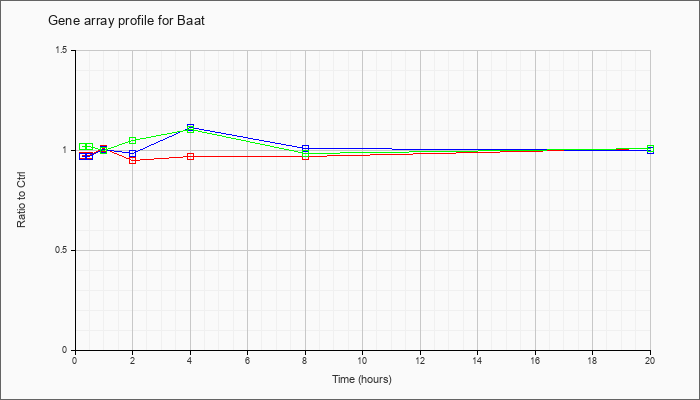

Baat	KLA  ATP  ATP+KLA	NM_007519	bile acid-Coenzyme A: amino acid N-acyltransferase (Baat), mRNA [NM_007519]	KLA	.98	.99	1.01	.95	.97	.97	1.01
				ATP	.97	.97	1.01	.99	1.12	1.01	1.00
				KLA/ATP	1.02	1.04	1.00	1.05	1.10	.99	1.01
Cdo1	KLA  ATP  ATP+KLA	NM_033037	cysteine dioxygenase 1, cytosolic (Cdo1), mRNA [NM_033037]	KLA	1.28	1.33	1.27	1.30	1.24	1.26	1.10
				ATP	1.09	1.13	1.79	7.13	7.75	3.67	1.26
				KLA/ATP	1.31	1.37	1.77	5.21	6.82	4.19	1.94
Csad	KLA  ATP  ATP+KLA	NM_144942	cysteine sulfinic acid decarboxylase (Csad), mRNA [NM_144942]	KLA	.93	.95	.94	.92	.97	.90	.78
				ATP	.92	.80	.70	.68	.73	.64	.62
				KLA/ATP	.87	.86	.82	.81	.97	.69	.57
Gad1	KLA  ATP  ATP+KLA	AK054554	10 days neonate olfactory brain cDNA, RIKEN full-length enriched library, clone:E530004P22 product:glutamic acid decarboxylase 1, full insert sequence. [AK054554]	KLA	1.03	1.00	1.00	1.00	1.00	.98	1.10
				ATP	1.03	.91	1.01	1.05	.99	.97	1.08
				KLA/ATP	.97	.99	.99	1.10	1.02	1.09	.96
Gad1	KLA  ATP  ATP+KLA	NM_008077	glutamic acid decarboxylase 1 (Gad1), mRNA [NM_008077]	KLA	1.03	.99	1.00	1.01	1.01	.97	.99
				ATP	1.02	1.02	1.01	.99	1.02	1.03	.98
				KLA/ATP	.96	1.03	1.04	.99	.99	1.04	1.01
Gad2	KLA  ATP  ATP+KLA	NM_008078	glutamic acid decarboxylase 2 (Gad2), mRNA [NM_008078]	KLA	1.03	1.07	1.11	1.11	1.04	.99	1.07
				ATP	.97	.99	1.02	1.02	1.01	.95	.97
				KLA/ATP	1.05	1.08	1.04	1.01	1.00	1.06	1.00
Ggt1	KLA  ATP  ATP+KLA	NM_008116	gamma-glutamyltransferase 1 (Ggt1), mRNA [NM_008116]	KLA	1.03	1.00	1.00	1.05	1.00	1.02	1.02
				ATP	1.00	1.00	.96	1.00	1.03	1.02	.99
				KLA/ATP	.98	.99	1.04	1.00	.99	.98	.98

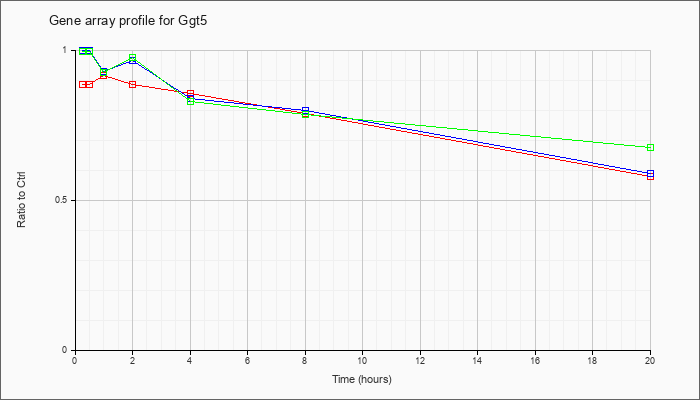

Ggt5	KLA  ATP  ATP+KLA	NM_011820	gamma-glutamyltransferase 5 (Ggt5), mRNA [NM_011820]	KLA	.89	.91	.92	.89	.86	.79	.58
				ATP	1.00	1.03	.93	.97	.84	.80	.59
				KLA/ATP	1.00	.92	.93	.98	.83	.79	.68

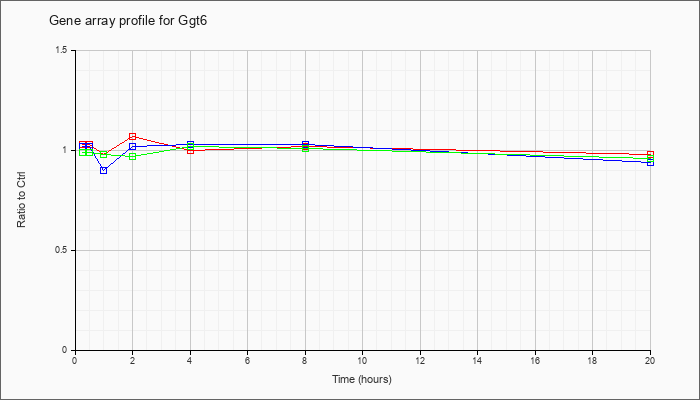

Ggt6	KLA  ATP  ATP+KLA	NM_027819	gamma-glutamyltransferase 6 (Ggt6), mRNA [NM_027819]	KLA	1.03	.90	.98	1.07	1.00	1.02	.98
				ATP	1.02	1.07	.90	1.02	1.03	1.03	.94
				KLA/ATP	.99	1.04	.98	.97	1.02	1.01	.96

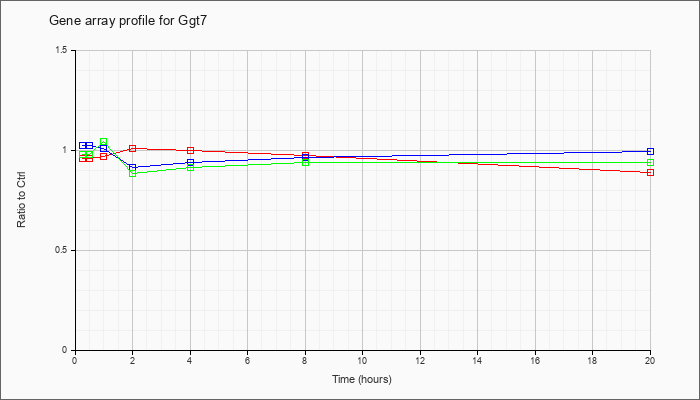

Ggt7	KLA  ATP  ATP+KLA	NM_144786	gamma-glutamyltransferase 7 (Ggt7), mRNA [NM_144786]	KLA	.96	1.03	.97	1.01	1.00	.98	.89
				ATP	1.03	1.02	1.01	.92	.94	.97	1.00
				KLA/ATP	.98	.95	1.05	.89	.92	.94	.94
