Microarray analysis of bone marrow-derived macrophage cells treated with Kdo₂-lipid A (KLA) and ATP

Kdo₂-Lipid A / ATP gene array data - treatment:control ratios

KEGG pathway: Sulfur metabolism (mmu00920)

Legend: : View data/graphs for replicates

Gene symbol	Time course plot	Accession	Description	Treatment	15min	30min	1hr	2hr	4hr	8hr	20hr
Bpnt1	KLA  ATP  ATP+KLA	NM_011794	bisphosphate 3-nucleotidase 1 (Bpnt1), mRNA [NM_011794]	KLA	1.14	1.15	1.07	1.09	.98	.90	1.07
				ATP	.93	.96	1.17	1.28	1.02	1.02	1.16
				KLA/ATP	1.06	1.15	1.27	1.28	1.01	.90	.85

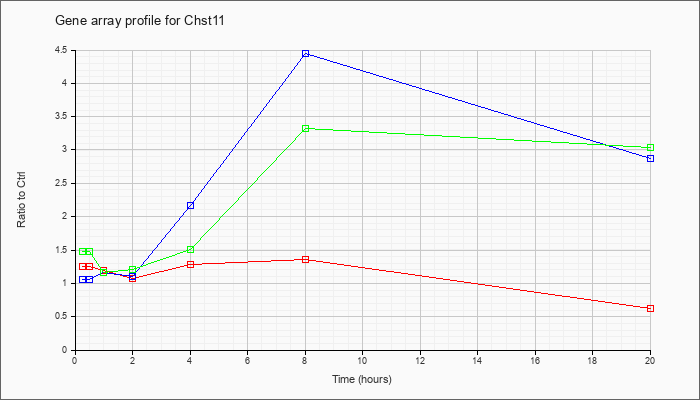

Chst11	KLA  ATP  ATP+KLA	NM_021439	carbohydrate sulfotransferase 11 (Chst11), mRNA [NM_021439]	KLA	1.26	1.30	1.19	1.08	1.28	1.35	.63
				ATP	1.05	1.23	1.16	1.10	2.16	4.45	2.87
				KLA/ATP	1.48	1.47	1.17	1.21	1.51	3.33	3.04

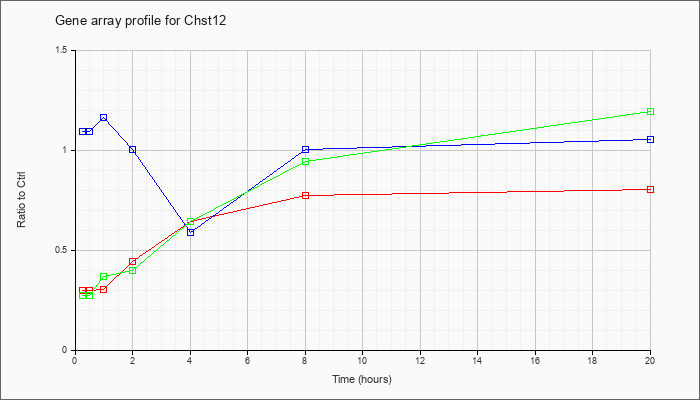

Chst12	KLA  ATP  ATP+KLA	NM_021528	carbohydrate sulfotransferase 12 (Chst12), mRNA [NM_021528]	KLA	.30	.28	.31	.45	.65	.78	.81
				ATP	1.09	1.12	1.17	1.01	.59	1.01	1.06
				KLA/ATP	.28	.31	.37	.40	.65	.95	1.20
Chst13	KLA  ATP  ATP+KLA	XM_978459	gb|PREDICTED: Mus musculus carbohydrate (chondroitin 4) sulfotransferase 13 (Chst13), mRNA [XM_978459]	KLA	.89	1.03	.99	1.02	.98	.99	.97
				ATP	.99	1.03	1.00	.99	.98	.89	.97
				KLA/ATP	.99	1.00	.99	.96	.97	.99	.99
Impad1	KLA  ATP  ATP+KLA	AK147096	17 days embryo kidney cDNA, RIKEN full-length enriched library, clone:I920165A15 product:hypothetical protein, full insert sequence [AK147096]	KLA	1.24	1.16	1.08	.87	.84	.79	.67
				ATP	1.01	.98	.87	.50	1.58	1.49	.50
				KLA/ATP	1.17	1.08	.95	.59	1.31	.99	.41
Impad1	KLA  ATP  ATP+KLA	NM_177730	inositol monophosphatase domain containing 1 (Impad1), mRNA [NM_177730]	KLA	1.83	1.73	1.69	1.97	1.48	1.27	1.26
				ATP	1.04	.91	.89	.57	1.14	3.17	2.06
				KLA/ATP	1.67	1.65	1.64	.98	1.14	2.21	3.24
Papss1	KLA  ATP  ATP+KLA	NM_011863	3-phosphoadenosine 5-phosphosulfate synthase 1 (Papss1), mRNA [NM_011863]	KLA	.86	.95	.84	.89	.77	.70	.81
				ATP	.99	1.02	1.06	1.10	.74	.64	.75
				KLA/ATP	.93	.89	.86	.93	.68	.56	.69
Papss2	KLA  ATP  ATP+KLA	AK029185	0 day neonate head cDNA, RIKEN full-length enriched library, clone:4831410G12 product:3-phosphoadenosine 5-phosphosulfate synthase 2, full insert sequence. [AK029185]	KLA	1.04	1.07	.97	.95	1.08	1.07	.94
				ATP	.96	1.01	1.00	1.02	.96	1.01	.97
				KLA/ATP	.99	1.01	1.02	1.11	1.01	.98	1.02
Papss2	KLA  ATP  ATP+KLA	NM_011864	3-phosphoadenosine 5-phosphosulfate synthase 2 (Papss2), mRNA [NM_011864]	KLA	1.72	1.84	1.85	1.50	1.56	1.01	1.14
				ATP	1.07	1.14	1.07	1.00	1.19	1.75	1.07
				KLA/ATP	1.64	1.73	1.57	1.58	1.46	1.54	1.10

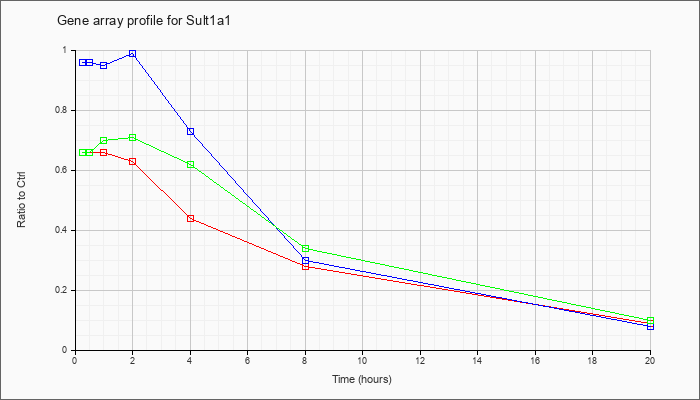

Sult1a1	KLA  ATP  ATP+KLA	NM_133670	sulfotransferase family 1A, phenol-preferring, member 1 (Sult1a1), mRNA [NM_133670]	KLA	.66	.67	.66	.63	.44	.28	.09
				ATP	.96	.88	.95	.99	.73	.30	.08
				KLA/ATP	.66	.63	.70	.71	.62	.34	.10
Sult1e1	KLA  ATP  ATP+KLA	NM_023135	sulfotransferase family 1E, member 1 (Sult1e1), mRNA [NM_023135]	KLA	.98	1.00	1.01	1.03	.98	1.02	1.05
				ATP	1.03	.99	1.05	1.06	1.00	.94	1.04
				KLA/ATP	1.00	.99	.92	.97	.98	1.00	.96
Sult2b1	KLA  ATP  ATP+KLA	NM_017465	sulfotransferase family, cytosolic, 2B, member 1 (Sult2b1), mRNA [NM_017465]	KLA	.99	.94	.94	.97	.97	.94	.91
				ATP	.95	1.02	.99	.98	1.07	1.07	.94
				KLA/ATP	.91	1.00	1.03	.94	1.06	1.23	1.06
Suox	KLA  ATP  ATP+KLA	NM_173733	sulfite oxidase (Suox), nuclear gene encoding mitochondrial protein, mRNA [NM_173733]	KLA	.52	.46	.44	.46	.40	.38	.37
				ATP	.89	.80	1.38	.98	.56	1.02	.94
				KLA/ATP	.43	.47	.67	.52	.59	.86	.58
