Microarray analysis of bone marrow-derived macrophage cells treated with Kdo₂-lipid A (KLA) and ATP

Kdo₂-Lipid A / ATP gene array data - treatment:control ratios

KEGG pathway: Lipoic acid metabolism (mmu00785)

Legend: : View data/graphs for replicates

Gene symbol	Time course plot	Accession	Description	Treatment	15min	30min	1hr	2hr	4hr	8hr	20hr

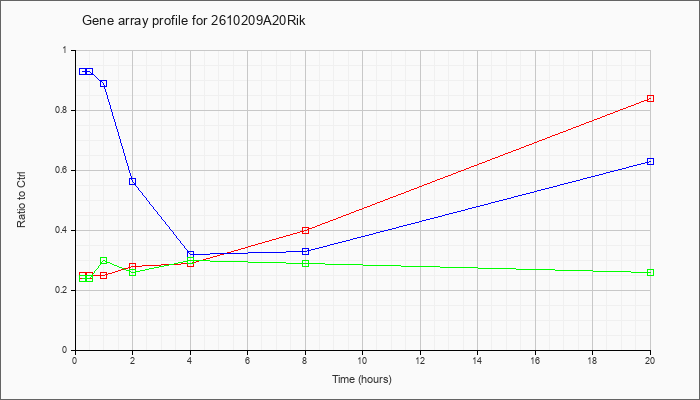

2610209A 20Rik	KLA  ATP  ATP+KLA	NM_026010	RIKEN cDNA 2610209A20 gene (2610209A20Rik), mRNA [NM_026010]	KLA	.25	.25	.25	.28	.29	.40	.84
				ATP	.93	.93	.89	.56	.32	.33	.63
				KLA/ATP	.24	.25	.30	.26	.30	.29	.26

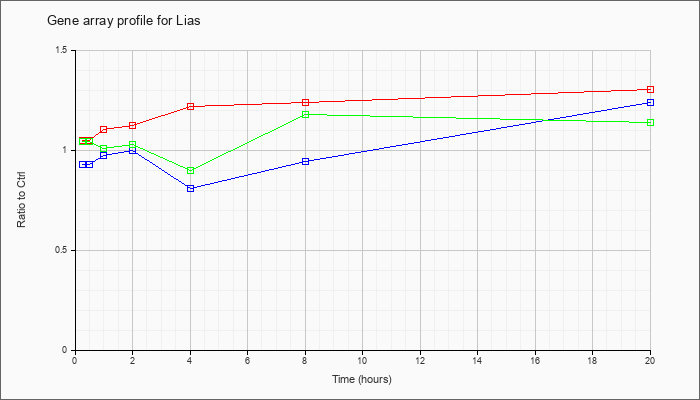

Lias	KLA  ATP  ATP+KLA	NM_024471	lipoic acid synthetase (Lias), nuclear gene encoding mitochondrial protein, mRNA [NM_024471]	KLA	1.05	1.12	1.11	1.12	1.22	1.24	1.31
				ATP	.93	.95	.98	1.00	.81	.95	1.24
				KLA/ATP	1.05	1.07	1.01	1.03	.90	1.18	1.14
Lipt1	KLA  ATP  ATP+KLA	AK048005	16 days embryo head cDNA, RIKEN full-length enriched library, clone:C130029F12 product:similar to LIPOYLTRANSFERASE [Homo sapiens], full insert sequence [AK048005]	KLA	1.00	1.02	1.00	.99	1.07	.93	.98
				ATP	1.01	1.08	1.07	.94	.99	.98	.97
				KLA/ATP	.92	1.03	1.01	.96	.93	.92	.91
Lipt1	KLA  ATP  ATP+KLA	NM_001037918	lipoyltransferase 1 (Lipt1), nuclear gene encoding mitochondrial protein, mRNA [NM_001037918]	KLA	.65	.69	.66	.67	.66	.69	1.01
				ATP	.99	.92	.79	.67	.58	.81	.81
				KLA/ATP	.74	.70	.66	.61	.57	.67	.72

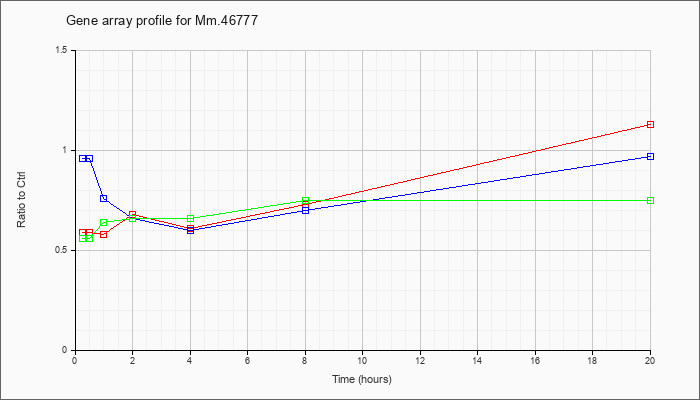

Mm.46777	KLA  ATP  ATP+KLA	13385513	Unknown	KLA	.59	.57	.58	.68	.61	.73	1.13
				ATP	.96	.91	.76	.66	.60	.70	.97
				KLA/ATP	.56	.58	.64	.66	.66	.75	.75
